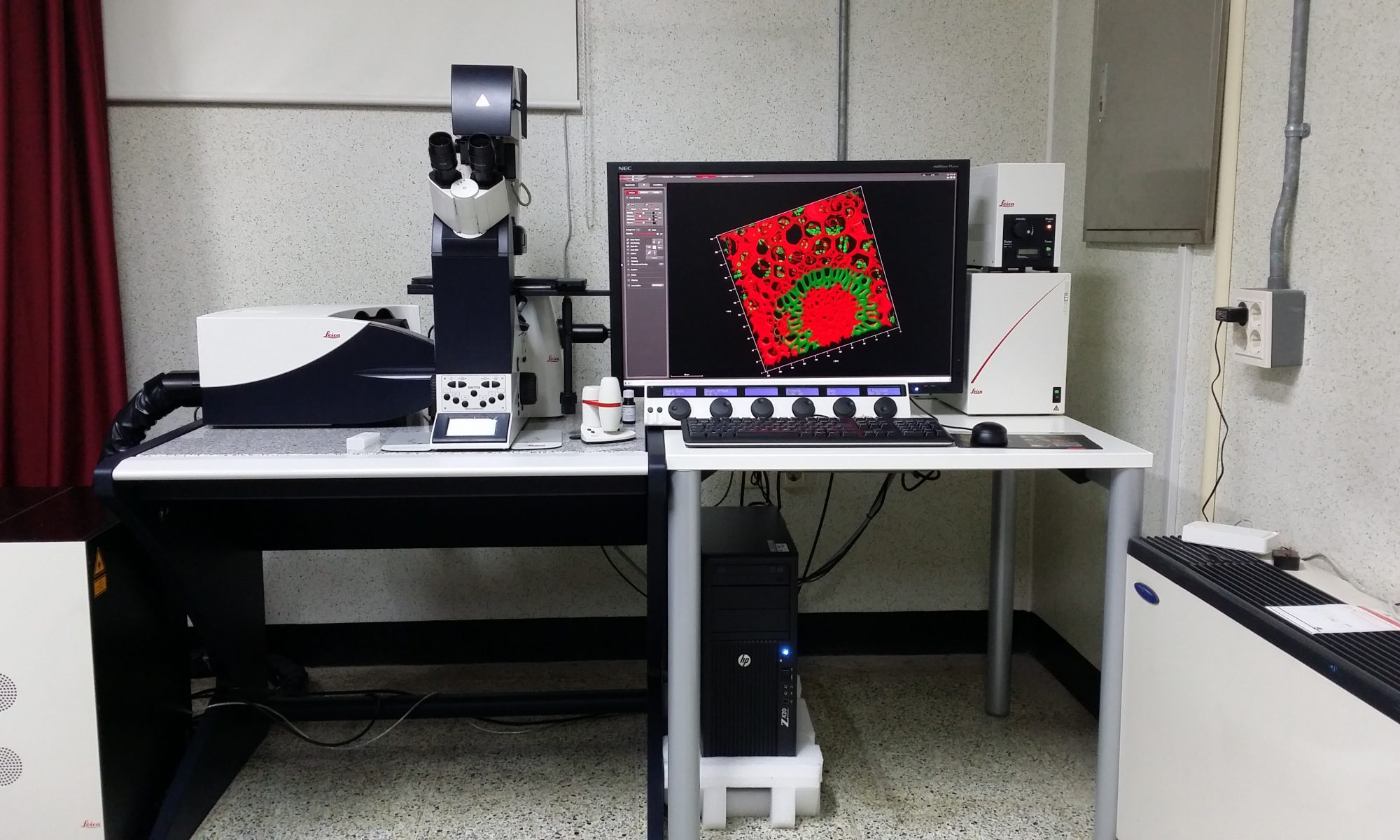

Microscopes Microscope stand Options
Upright Leica DM6 CS
Leica DM6 CFS
Leica DM6 CFS w/o TL axis
Inverted Leica DMi8 CS
Leica DMi8 CEL Compact
Leica DMi8 CEL Advanced
Vibration isolation Isolation options Specifications
Anti-vibration table Yes (active/passive)
Microscope stage Stage options Specifications
Autofocus Optional, for Leica DMi8 CS
Motorfocus (stand) Travel range depending on mechanics of microscope/
minimum step size 50 nm, adjustable in increments of < 4 nm
Z-Galvonometer Selectable z-modes (Galvo Flow/discrete steps) available,
1500 μm range / minimum step size 20 nm, adjustable in increments
of < 1.5 nm
500 μm restricted range/minimum step size 20 nm, adjustable in
increments of < 0.5 nm
Continuous wave lasers Laser type Specifications
VIS Solid state laser 40mW: 448 nm
Solid state laser 20mW: 488 nm
Solid state laser 20mW: 514 nm
Solid state laser 20mW: 552 nm
Solid state laser 30mW: 638 nm
Diode 40mW: 442 nm
Ar 65mW: 458, 476, 488, 496, 514 nm
HeNe, 2mW: 594 nm
HeNe, 10mW: 633 nm
DPSS, 20mW: 561 nm
UV UV OPSL 80mW: 355 nm
Diode, 50mW: 405 nm
Pulsed lasers Laser type Specifications
IR Power & tuning range depending on selected model

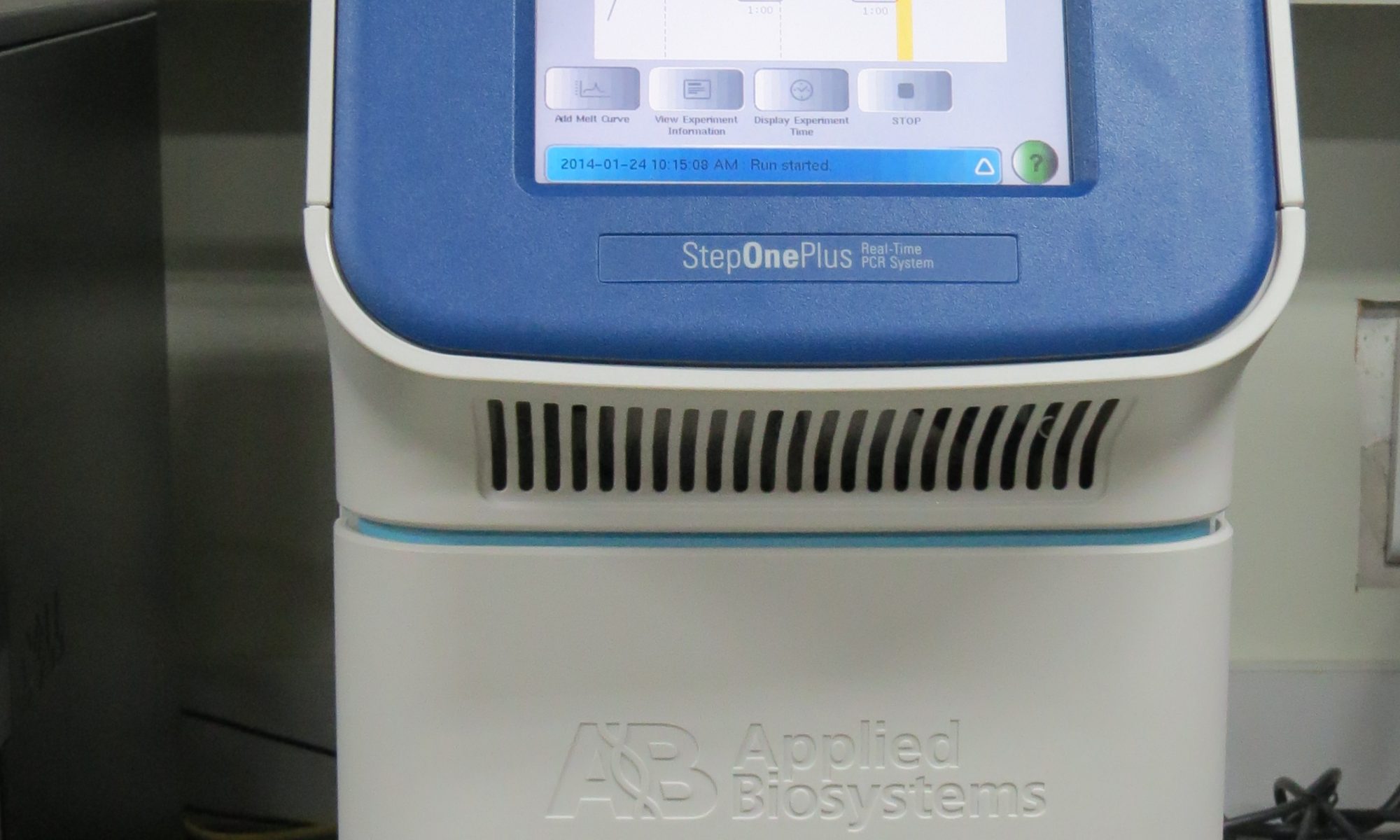

– 96 wells for higher throughput
– 4 colors for more flexibility
– VeriFlex™ Blocks technology for thermal cycling flexibility
– Quantitative PCR Run Time : Fast: <40 minutes Standard: <2 hours
– Temperature range : 4°C–100°C

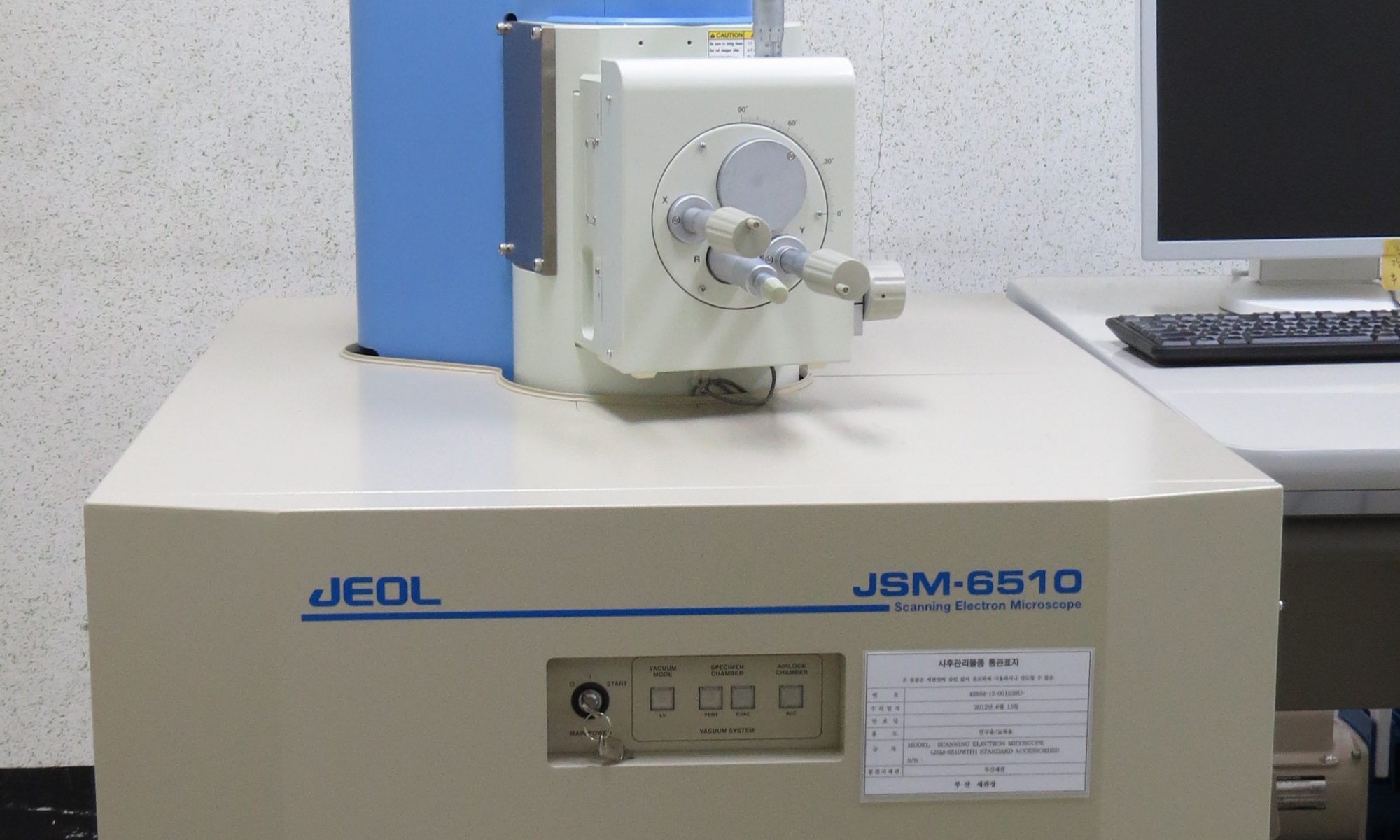

– Resolution : 3.0nm (30kV, WD8mm)
– Magnification : ×5~300,000
– Accelerating voltage : 0.3~30kV
– Electron gun : Factory Pre-centered Filament
– Specimen stage : Eucentric large-specimen stage
– X: 80 mm, Y: 40 mm, Z: 5 mm to 48 mm,
– Tilt: −10° to 90°, Rotation: 360

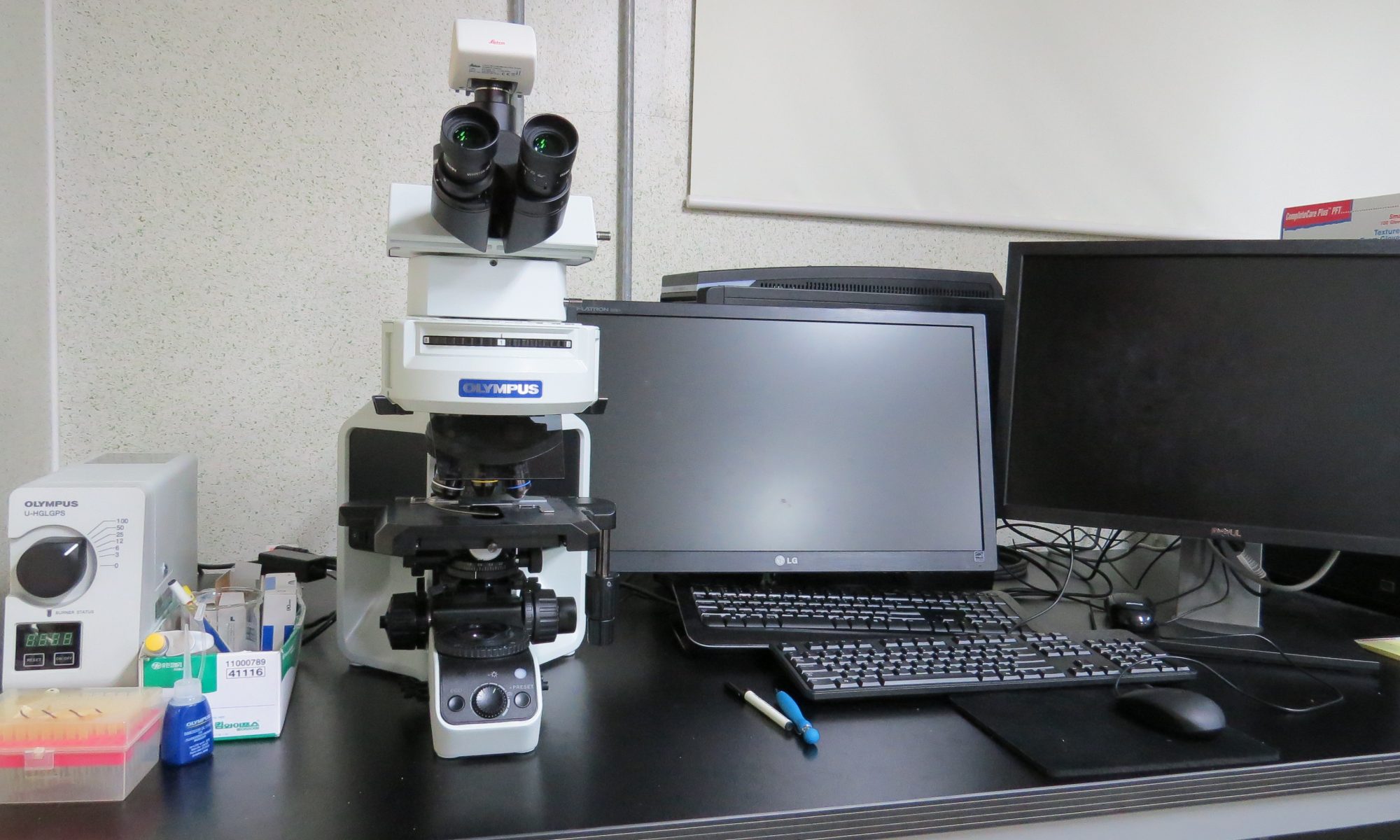

Optical system	UIS2 optical system
Focus	Vertical stage movement: 25mm stage stroke with coarse adjustment limit stopper, Torque adjustment for coarse knobs, Stage mounting position variable, High sensitivity fine focusing knob (minimum adjustment gradations: 1µm)
Illuminator	Built-in Köhler illumination for transmitted light, light intensity manager switch, Light intensity LED indicator. Built-in filters (LBD-IF, ND6, ND25, optional) 12V/100W halgen bulb (pre-centered)

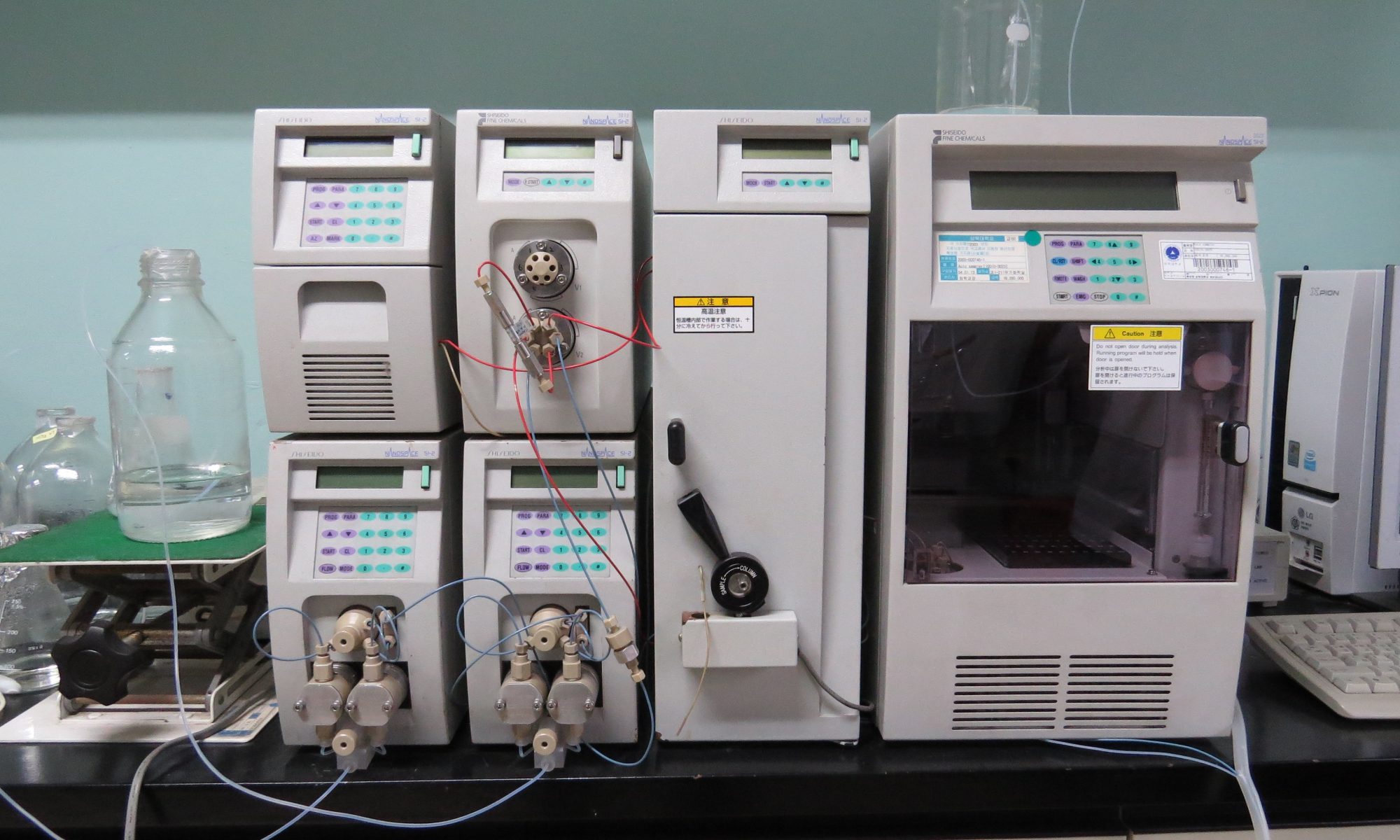

– Single Pump : Flow rate range 1 ~ 3000㎕/min
– Autosampler : Sample Injection Vol. 0.1-400㎕, 0.1㎕ steps, Sample Cooling Electronic
–  Refrigeration 4℃-20℃, Variable setting
– Column Oven : Temperatureto (RT +10℃) 80℃ 100℃ Thermostat, Temp. Accuracy ±0.5℃
– Avaliable detector : UV, FL

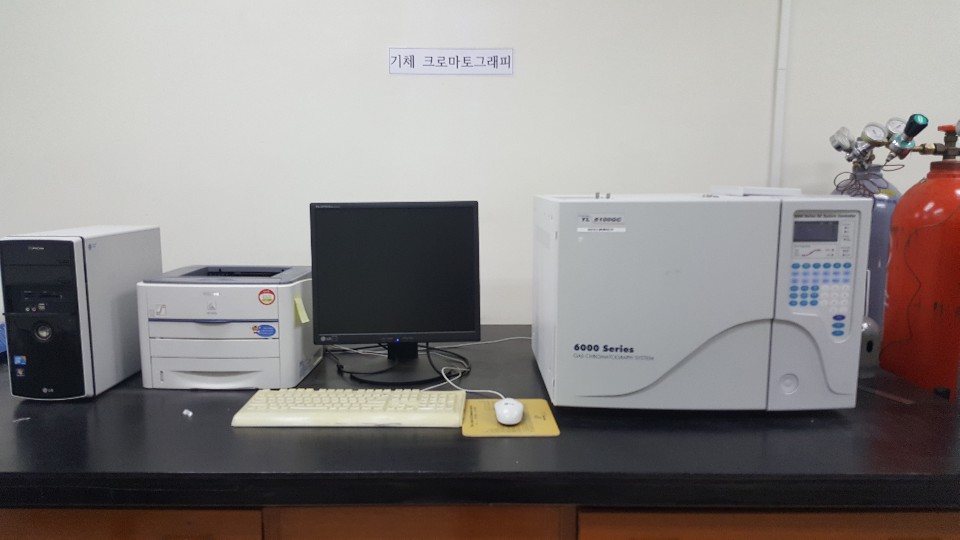

제조사: 영린기기

검출기: FID, TCD

보유컬럼: HP-1, HP-5, DB-WAX, HP-608, HP-FFAP

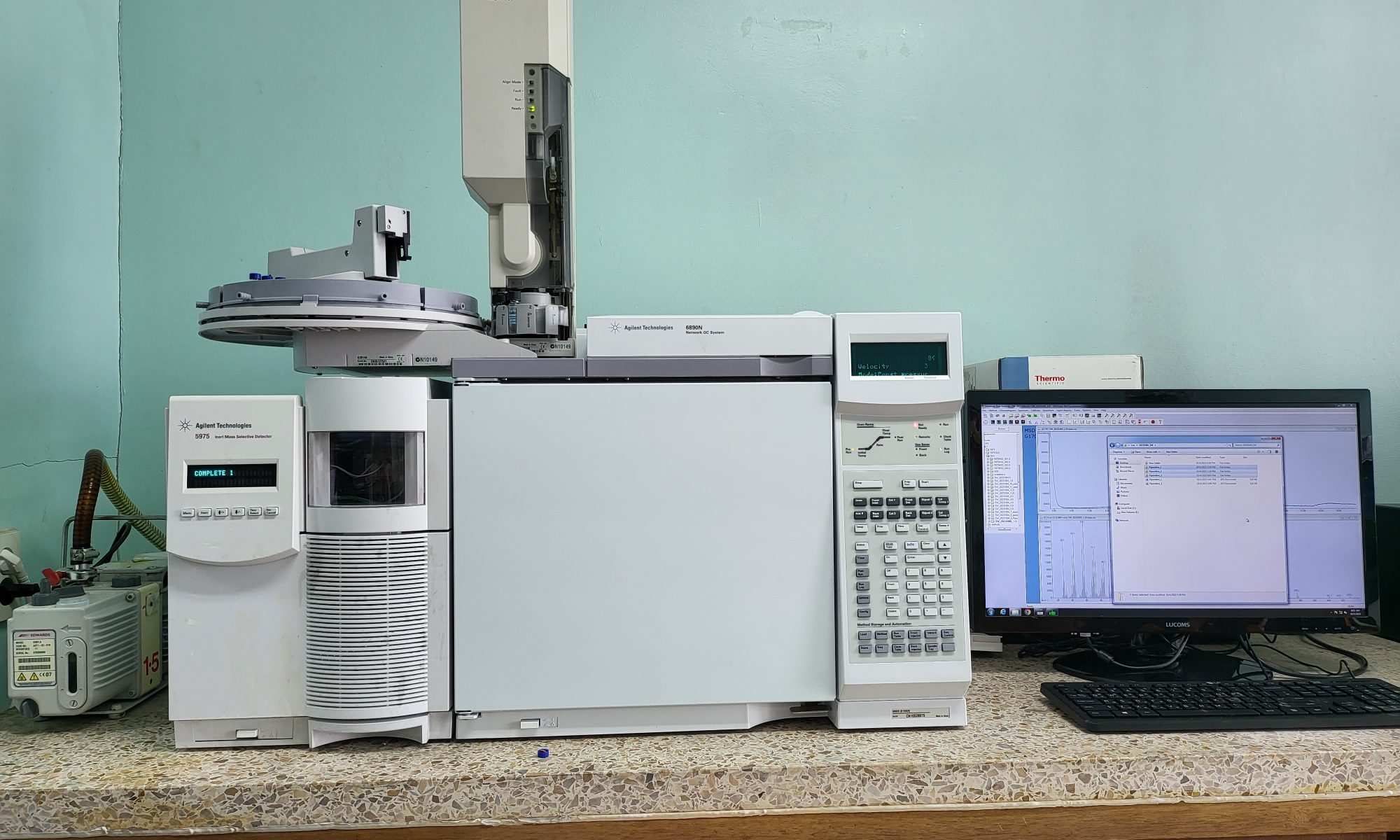

제조사: Agilent

모델명:

GC 6890

MSD 5975,

Autosampler 7683

보유컬럼: HP-1, HP-5, DB-WAX, HP-608, HP-FFAP

Mass 사양

● Sensitivity : S/N = 400 : 1 이상 (EI SCAN mode)
● Mass range : 1.6 – 1,050
● Temperature range : 4℃ – 450℃
● Scan speed : Max. 12,500 amu/sec

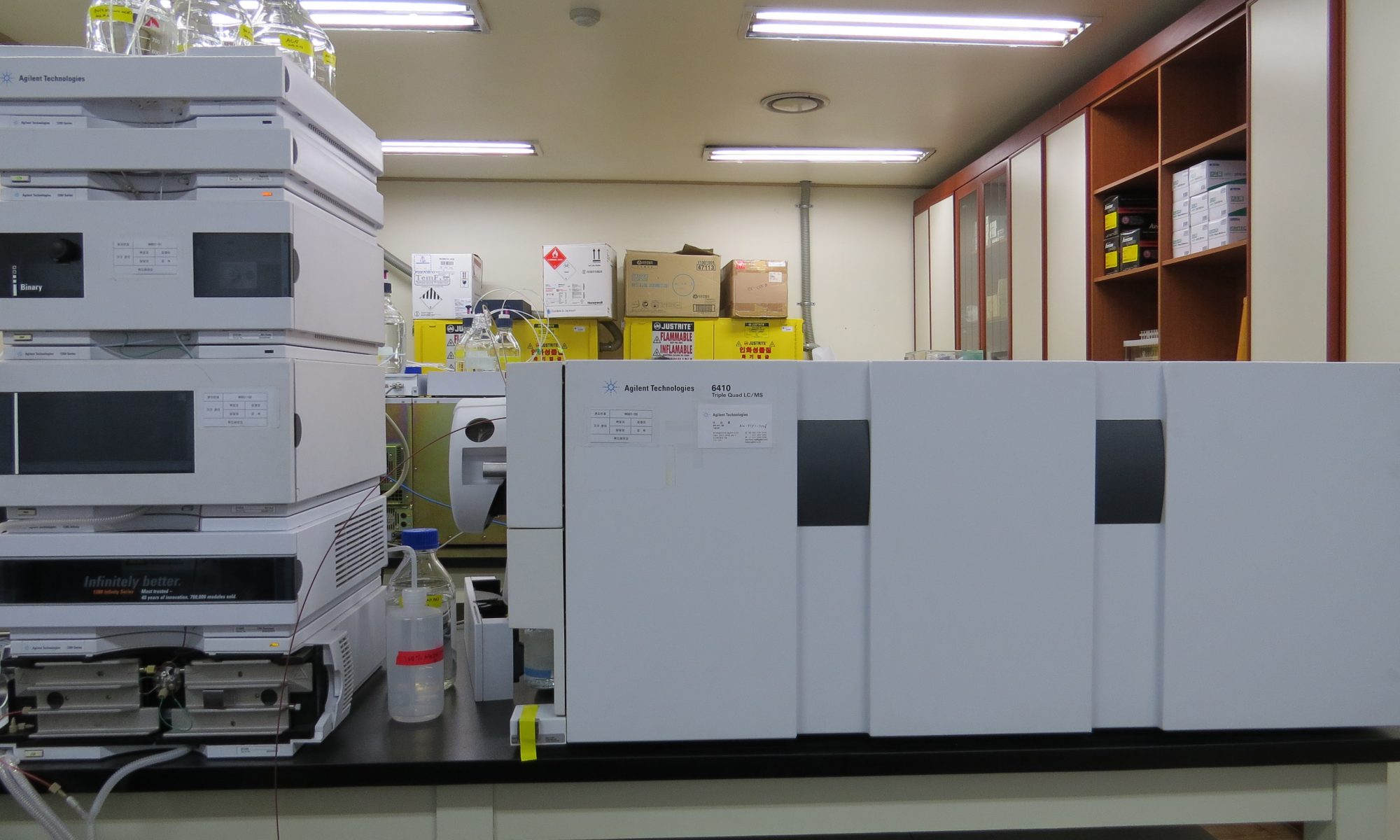

– Mass range : m/z 15–1,650
– Scan rate : 5,200 u/sec
– Scan modes : MS scan, MS/MS product ion scan, MRM, MS/MS neutral loss/gain scan and precursor ion scan, SIM
– Minimum MRM dwell time : 5 ms with 10 MRMs MRM transitions : 99 per time segment, thousands possible with multiple segments
– Positive/negative polarity switching : Inter-segment delay of 1.5 sec
– Collision cell : High-pressure, hexapole with linear acceleration

*   Mass spectrometry는 현재 고장으로 사용이 불가능하며 같이 장착된 DAD를 이용한 활용이 가능함.

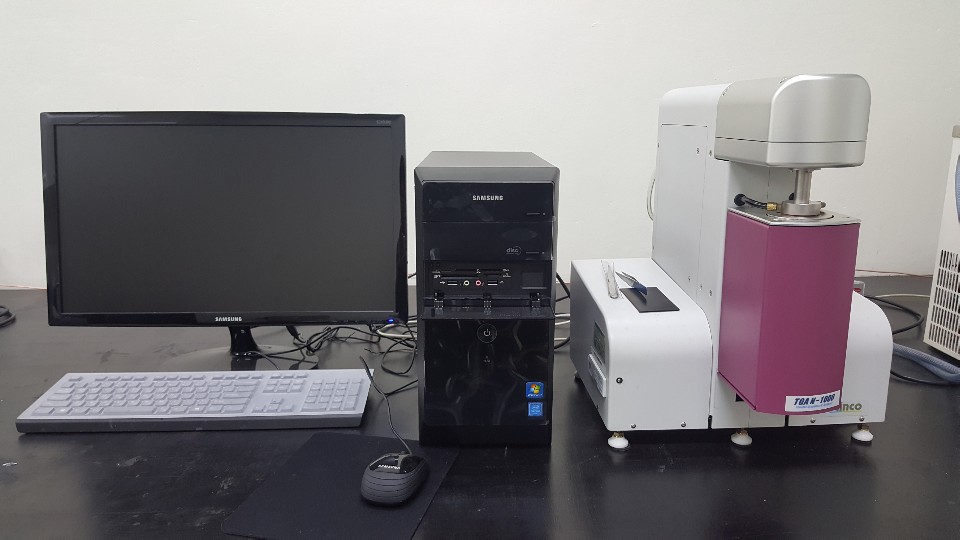

• Temperature range:  Ambient to 990℃
• Programmed rate : 0.1 – 300 ℃/min
  Balance resolution : 0.1ug
• Furnace: Nichromel
• Dimensions: 535mm(W) * 350mm(D) * 470mm (H)

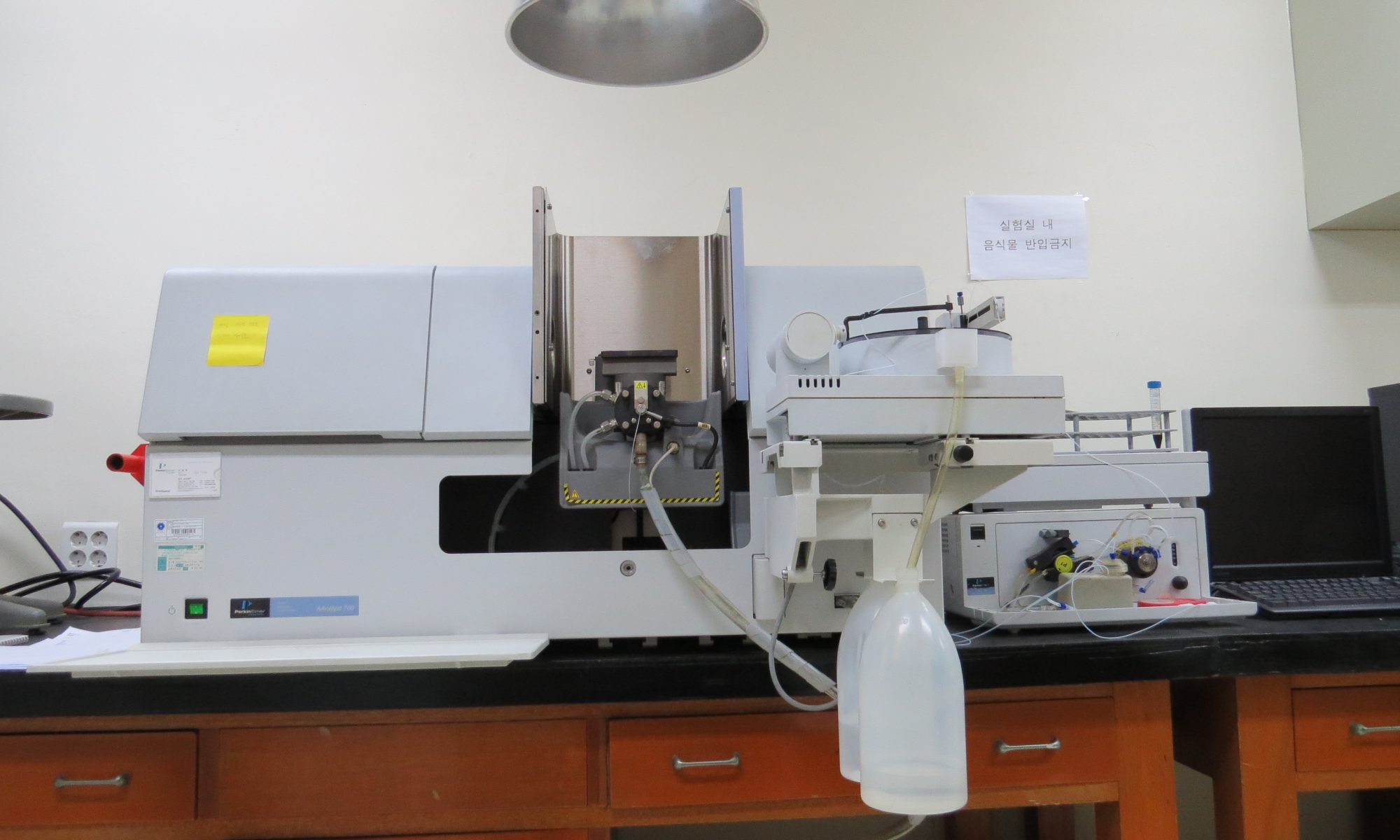

– Wavelength range: 190 – 900 nm
– Spectral bandwidths: 0.2, 0.7 and 2.0 nm, dual height; motorized slit drive for automatic slit selection
– Automatic Lamp Selection : 8-lamp holder with built-in power supplies for HA and EDL.
– Graphite furnace Temperature: Ambient up to 3000 °C in steps of 10 °C

• 보유램프:  Mo, Pb, Cu, As, Mg, Cd, V, Se, Ni, Zn, Fe, Co, Cr, Mn, Zn
