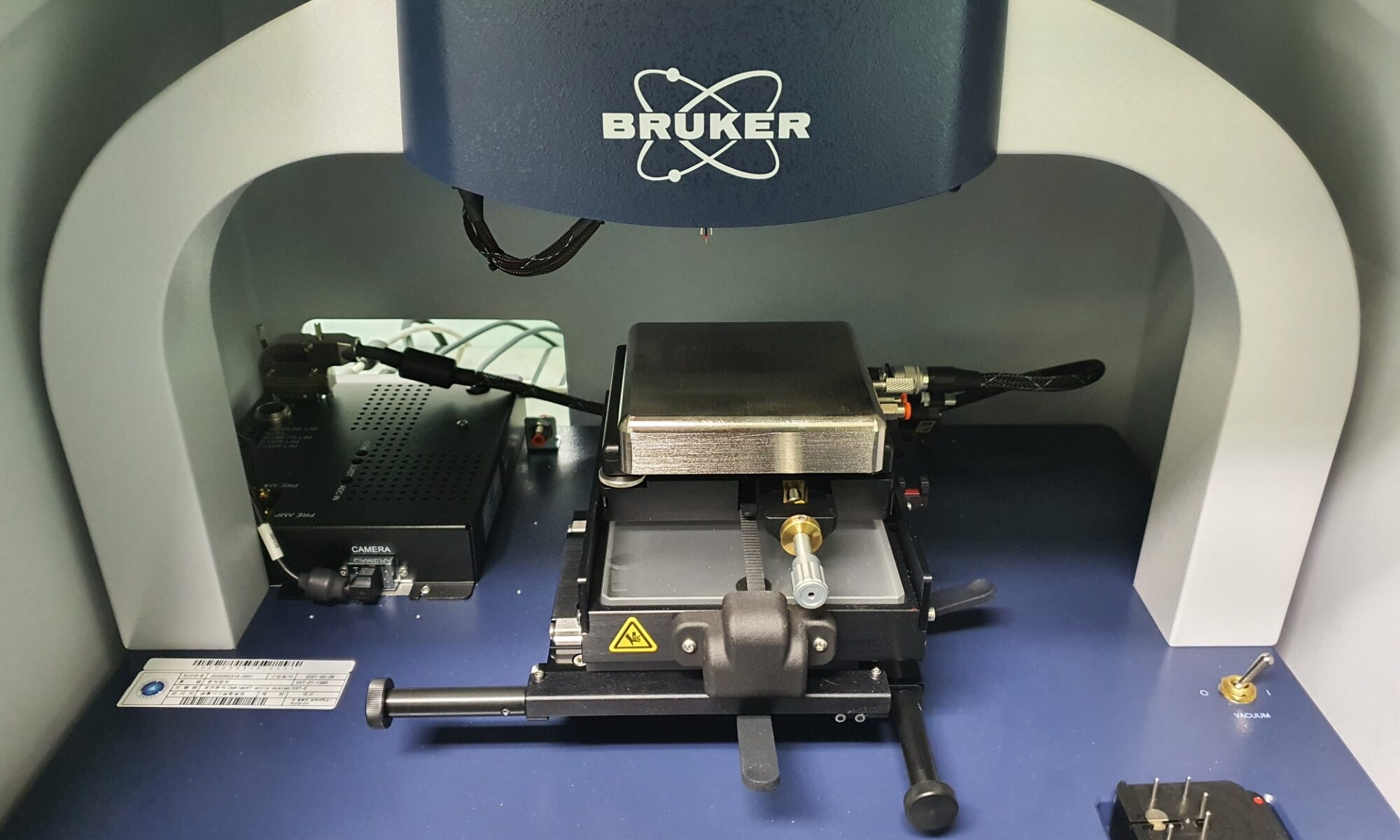

표면분석기 (Dektak entry system)

– DXT-E DektakXT Entry System
– DXT-220V-EU Configure Power for 220-240 VAC-Europe operation
– DXT-DESKTOP 64bit Desktop Controller
– DXT-4IN BASE 4-Inch square base platform with no vacuum capability
– DXT-STYL-2UM-B Stylus, LIS 3, 2um Ra dius- Type B
– DXT-2D STRESS 2D Stress Measurement Capability
– CAL-1UM Calibration Standard, nominal 940nm (0.94um),
– Vibration Isolation Table, including working area
– 1500mm x 900mm x 800mm (local supply)

겔이미지 분석장치

1) CN-4X Darkroom

2) CCD chip Camera

3) Resolution : 7.6 Megapixel

4) Motorized Zoom & Auto Focus

5) Dynamic range 4.8 OD

6) 21 x 26cm 312nm UV Transilluminator

7) 1Position F-590 Filter (Etbr 전용) 8) 16-bit, 65,536 grey levels 9) Bio vision Capt software (이미지 측정 및 분석기능)

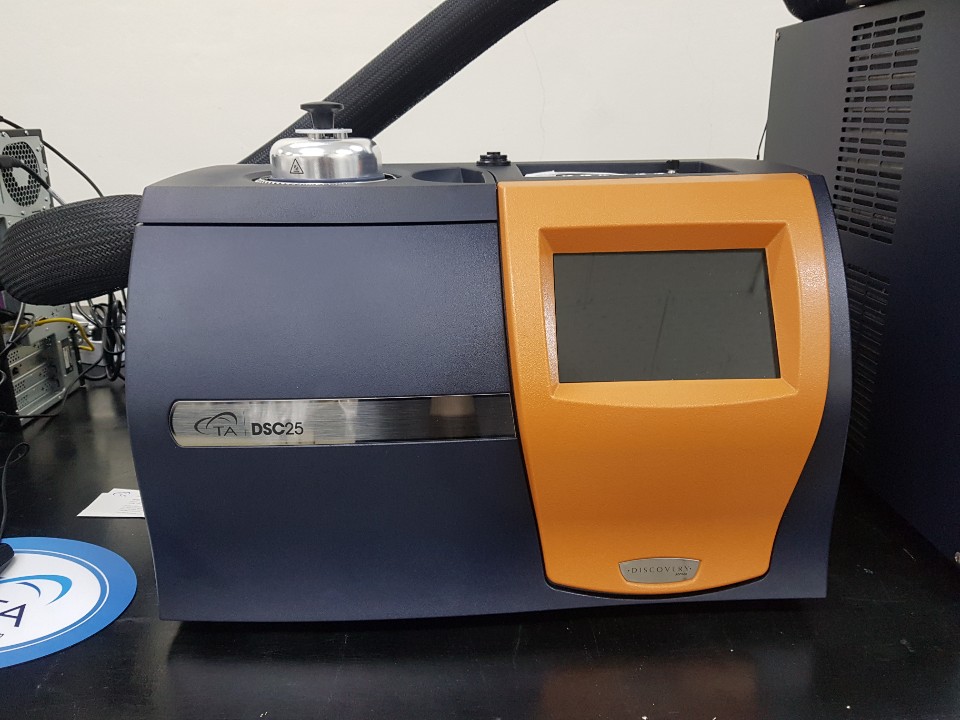

시차주사열량계 (DSC)

Specifications
* Fusion Cell
* Temperature Range : -180 to 725°C
* Temperature Precision : ±0.01°C
* Temperature Accuracy : ±0.1°C
* Calorimetric(Entalphy) Precision : ±0.1 %
* Baseline Flatness : < 100μW
* Baseline Reproducibility : < 40μW
* Touch Screen Control : Color App-Style Touch Screen
* User Replaceable Cell : Yes

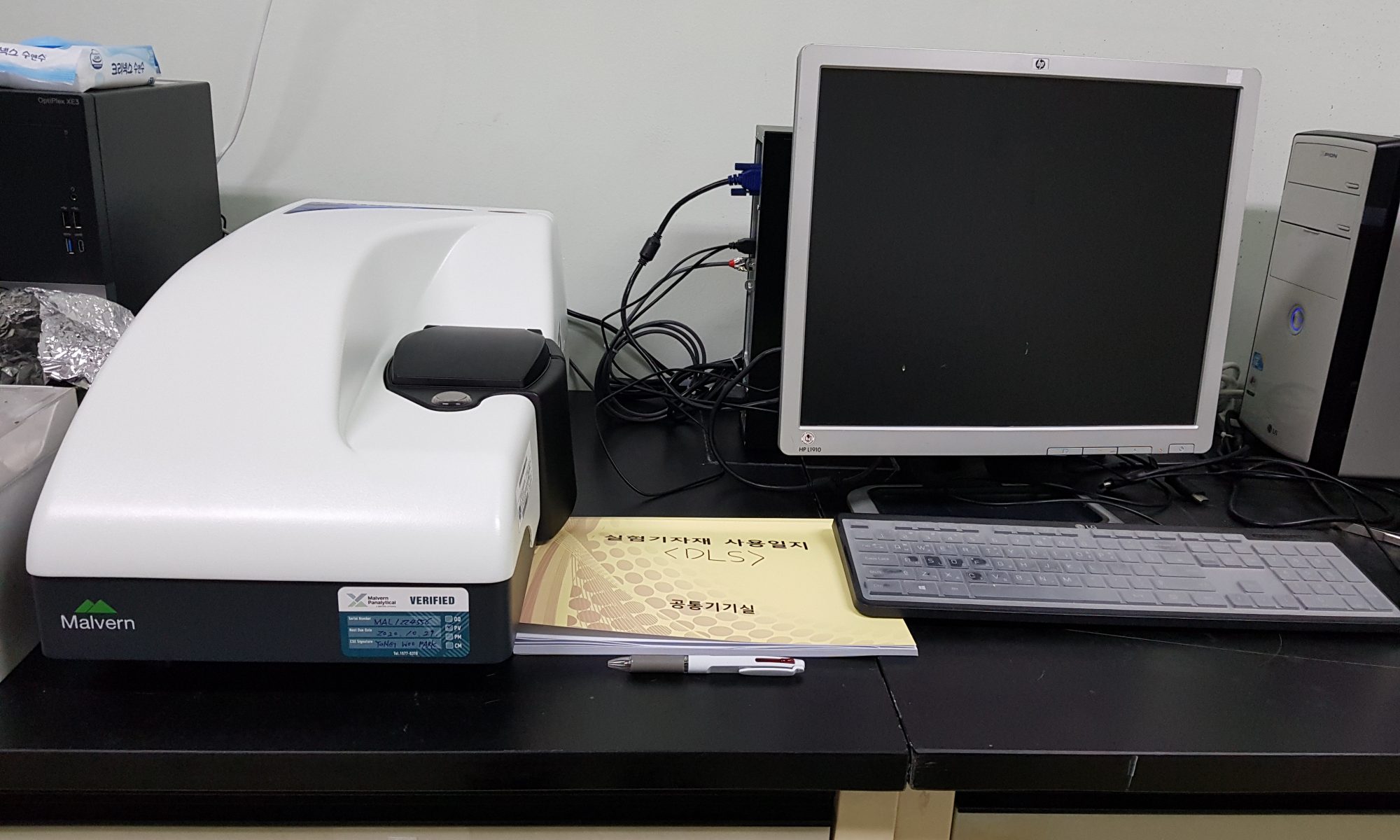

입도분석기 (DLS)

Ⅰ. 용도(End-user’s Use)
1. This instrument will be used for normal experiment, training and research purpose.
2. This equipment is an equipment for measuring the particle size of the nano-material.
3. This equipment can measure the zeta potential.
4. This equipment can measure the molecular weight.

Ⅱ. 장비의 구성(Configurations of Goods)
<주장비>
1. Nano Particle Size Analyzer 1 set
2. Standard Accessories 1 set
3. Optional Accessories 1 set

<부속장비>
4. Data Processing Unit 1 set

Ⅲ. 성능 및 규격(Performance and Specification)
<주장비>
1. Nano Particle Size Analyzer
1-1. Feature
1) Simplified sample preparation with little or no dilution for size mearsurement (<40wt%)
2) Comprehensinve range of low volume cells (12ul – 1ml)
3) Non-invasive back scatter technology built-in for increaserd sensitivity and accuracy
of nano particle < 1nm in size and <1000Da in Molecular weight

1-2. Measurement Method
1) Backscatter (more than 173 degree) preferred for concentrated dispersions.
2) Mixed mode measurement(FFR + SFR) method and Electrophoretic mobility measurement
for the Zeta-potential measurement.
3) Organic solvent sample can be measured by Smol

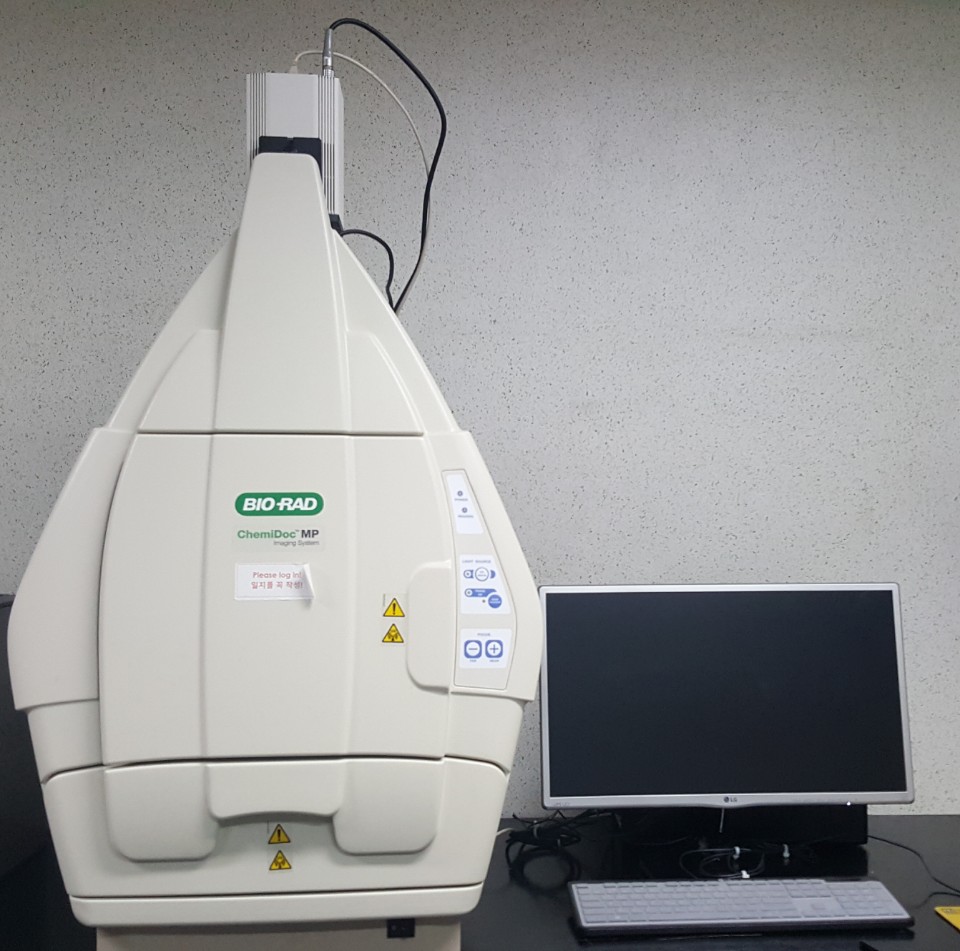

ChemiDoc

교내 사용 전용 장비입니다. 외부기관 사용은 불가하니 양해 부탁드립니다.

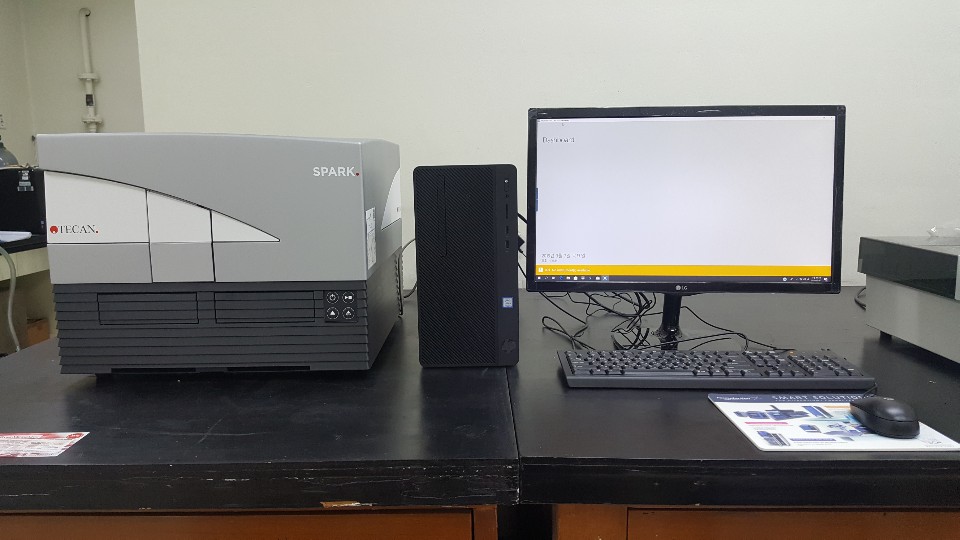

다기능 마이크로 플레이트 리더

General
– Light source : UV Xenon flashlamp
-Plate formats : 1 to 384 well plate
-Temperature Control : Ambient +4 – 42℃
-Shaking : Linear, orbital, Double-orbital

Absorbance
-Spectral Range : 200-1000nm
-High Speed Monochromator (HSM) 적용
-200-1000nm scan 에 5초 미만
-OD range : 0 – 4 OD
-Wavelength reproducibility : ≤ 0.5 nm

Fluorescence Intensity ( Top )_Filter Type
-Range : Top Module = Ex 230-900nm, Em 280-900nm (Enhanced)
Filter
Ex/Em 한쌍으로 총 6쌍(12개)의 filter set 포함.
Fix Type 아님. Filter 위치에 관계없이 Ex/Em 교차 선택 가능

Sensitivity
Limit of detection F/F – Top : ≤ 0.25 pM (≤ 25 amol/well; 100 μl)

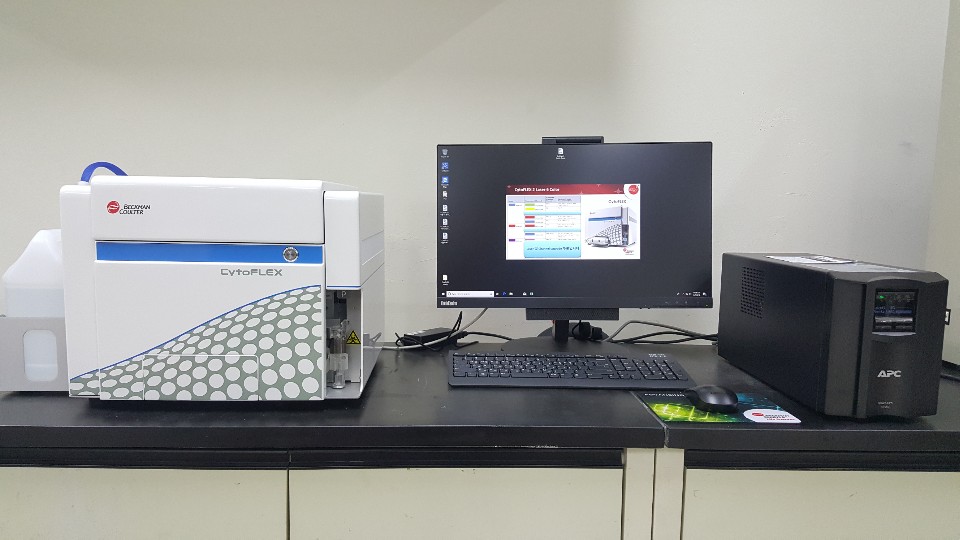

유세포분석기 (Flow chtometry)

Beckman Coulter advanced optical system

– Acquisition rate 30,000 events/sec
– Signal processing 7 decades dynamic range (Fully digital system)
– Sensitivity: FITC < 30 MESF PE <10 MESF
– Resolution: < 300nm with SSC & <200nm with VSSC
– Use sample volumes as low as 10ul
– CyExpert QC set up is easy (Auto QC)
– Compensation flexibility (automatic & manual)
– Deep-Well Plate Loader, Accepts standard U,V and flat
– Absolute Counting
– Heat Map
– Compliance with 21 CFR Part 11

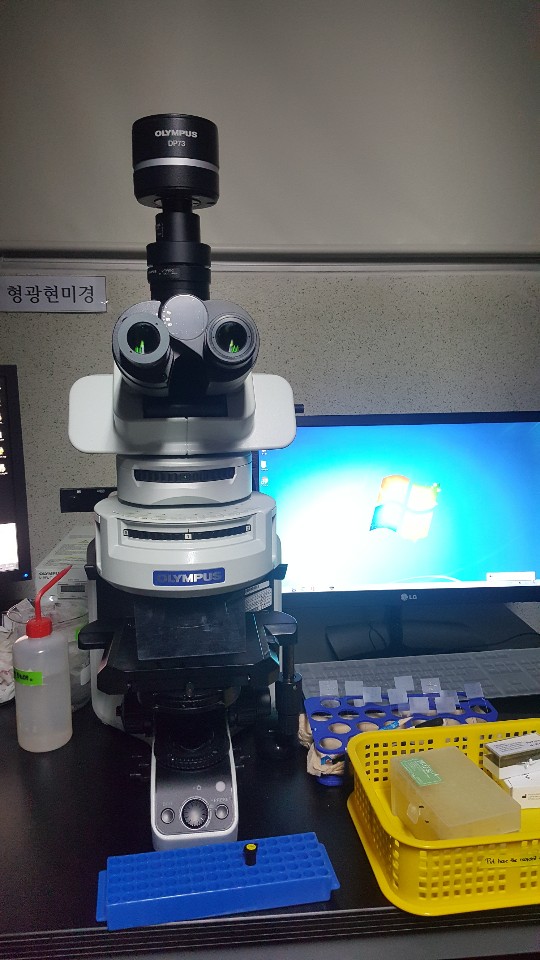

형광현미경 2 (Fluorescence microscope)

Optical system UIS2 optical system
Focus Vertical stage movement: 25mm stage stroke with coarse
adjustment limit stopper, Torque adjustment for coarse knobs,
Stage mounting position variable, High sensitivity fine focusing
knob (minimum adjustment gradations: 1µm)
Illuminator Built-in Köhler illumination for transmitted light, light intensity
manager switch, Light intensity LED indicator.
Built-in filters (LBD-IF, ND6, ND25, optional)
12V/100W halgen bulb (pre-centered)
