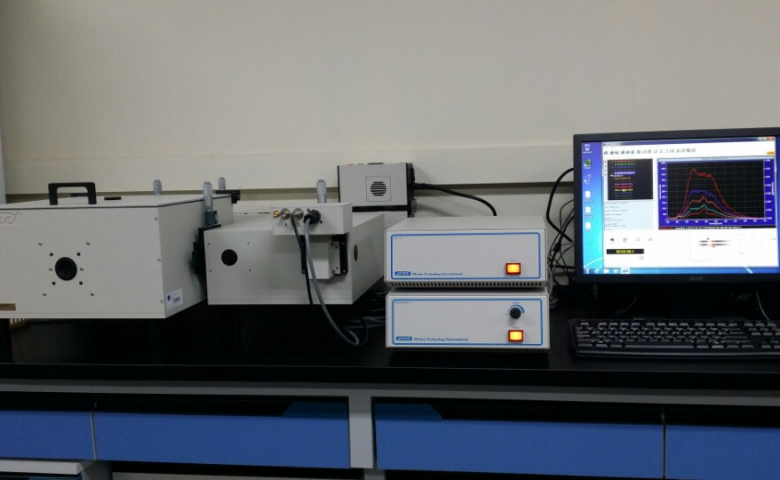

형광분광계 (Fluorescence spectrophotometer)
  • 장비명(국문)
    형광분광계 (Fluorescence spectrophotometer)
  • 장비명(영문)
    Fluorescence Spectrophotometer
  • 호실
    310호
  • 장비구분
    화학관련장비
  • 제조사
    PTI
  • 모델명
    QuantaMaster™ 400

상세스펙

– Detection Limit : 400 attomolar of fluorescein solution in 0.1 M NaOH
– Signal-to-Noise Ratio : 20000:1
– Maximum Data Acquisition Rate : 1,000,000 data points per second
– Minimum Data Acquisition Rate : 1 point per 1000 seconds
– Emission Range: 185 nm to 680 nm (optional to 1010 nm)
– Light Source : 75 W xenon arc lamp standard (150 W to 1000 W available)
– Excitation Monochromator : Coma-aberration corrected, asymmetrical, excitation optimized, Czerny-Turner design
– Emission Monochromator : Coma-aberration corrected, asymmetrical, emission optimized, Czerny-Turner design
– Grating Turret : Triple-grating, backlash-free, software controlled turret
– Focal Length : 300 mm
– Excitation Grating : 1200 line/mm 300 nm blaze (other gratings available upon request)
– Emission Grating : 1200 line/mm 400 nm blaze (other gratings available upon request)
– Optional Grating : 75–2400 line/nm and holographic models available
– Stray Light Suppression : 7 x 10^-7
– Wavelength Accuracy : ± 0.3 nm
– Wavelength Repeatability : ± 0.02 nm
– Wavelength Resolution : 0.022 nm
– Slewing Speed : 200 nm per second

응용분야

- The QuantaMaster™ 400 steady state spectrofluorometer is the most sensitive bench-top fluorometer on the market today. It’s signal to noise is 20,000:1 and with a 460 attomolar sensitivity, the QuantaMaster™ 400 allows even the most minute traces of fluorescent materials to be detected and identified in mixtures.

용도

- 기초 생물학적 반응 연구
- 단백질, 핵산 등의 생체 내 구조와 농도 연구
- 효소 활성 측정 여부 확인

기타

  • 담당부서
    공통기기실험실 (이성언)
  • 전화번호
    02-3399-3734
최종수정일: 2022.04.07
